| DN | PN | L(mm)Full Lenght | Ø D (mm) | b (mm) | k (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|
| ΔL Axial Motion | |||||||||
| 30 (mm) | 45 (mm) | 60 (mm) | 60 (mm) | 60 (mm) | |||||
| 25 | 16 | 30 | 260 | 360 | 460 | 560 | 115 | 85 | 14x4 |
| 32 | 16 | 30 | 260 | 360 | 460 | 560 | 140 | 100 | 18x4 |
| 40 | 16 | 30 | 260 | 360 | 460 | 560 | 150 | 110 | 18x4 |
| 50 | 16 | 30 | 360 | 460 | 560 | 660 | 165 | 125 | 18x4 |
| 65 | 16 | 60 | 360 | 460 | 560 | 660 | 185 | 145 | 18x8 |
| 80 | 16 | 60 | 410 | 510 | 610 | 710 | 200 | 160 | 18x8 |
| 100 | 16 | 60 | 410 | 510 | 610 | 710 | 220 | 180 | 18x8 |
| 125 | 16 | 60 | 460 | 660 | 760 | 860 | 250 | 210 | 18x8 |
| 150 | 16 | 60 | 460 | 660 | 760 | 860 | 285 | 240 | 22x8 |
| 200 | 16 | 60 | 510 | 700 | 800 | 900 | 340 | 295 | 22x12 |
| 250 | 16 | 60 | 600 | 800 | 900 | 1000 | 405 | 355 | 26x12 |

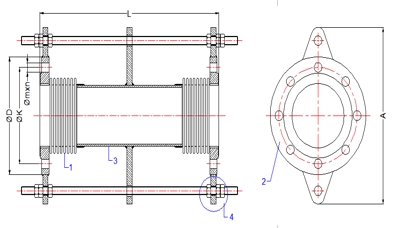

| No | Name | Meteriel |
|---|---|---|
| 1 | Corrugation | AISI 304:AISI 321/316/316L/316Ti/309/310 (op.) |
| 2 | Flange | ST 37 : AISI 304/316/321 (op.) |
| 3 | Astar | ST 37 :AISI 304/316/321 (op.) |
| 4 | Ring | ST 37 : AISI 304/316/321 (op.) |
