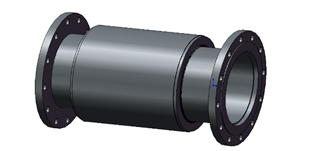

| MATERIALS | |
|---|---|
| BELLOW | AISI 304:AISI 321/316/316L/316Ti/309/310 (op.) |
| FLANGE | ST 37 : AISI 304/316/321 (op.) |
| PIPES | ST 37 :AISI 304/316/321 (op.) |
| RINGS | ST 37 : AISI 304/316/321 (op.) |
| DN | PN | L(mm)Overall Length | Ø D (mm) | b (mm) | k (mm) | Ø d x n | Effective Alan / Area (cm²) | ||
|---|---|---|---|---|---|---|---|---|---|
| ΔL Axial Movement | |||||||||
| 30 (mm) | 45 (mm) | 60 (mm) | |||||||
| 25 | 16 | 315 | 415 | 510 | 115 | 16 | 85 | 14x4 | 54 |
| 32 | 16 | 325 | 425 | 520 | 140 | 16 | 100 | 18x4 | 54 |
| 40 | 16 | 335 | 435 | 535 | 150 | 16 | 110 | 18x4 | 54 |
| 50 | 16 | 340 | 460 | 540 | 165 | 18 | 125 | 18x4 | 89 |
| 65 | 16 | 355 | 460 | 555 | 185 | 18 | 145 | 18x8 | 91 |
| 80 | 16 | 355 | 465 | 570 | 200 | 20 | 160 | 18x8 | 141 |
| 100 | 16 | 360 | 465 | 600 | 220 | 20 | 180 | 18x8 | 196 |
| 125 | 16 | 375 | 485 | 600 | 250 | 22 | 210 | 18x8 | 272 |
| 150 | 16 | 385 | 500 | 625 | 285 | 22 | 240 | 22x8 | 346 |
| 200 | 16 | 435 | 560 | 700 | 340 | 24 | 295 | 22x12 | 572 |
| 250 | 16 | 460 | 600 | 750 | 405 | 26 | 355 | 26x12 | 829 |
